Din module

Din module format to fit on DIN 32 mm rails

DIN-2LI
More Info Buy Now $219.99

Line Input - Two channel isolator for professional line inputs up to +22 dB. May be used with any combination of balanced or unbalanced sources or destinations. Screw-down terminals for easy integration.

  • Primary application:
  • Frequency response:
  • Max signal handling:
  • CMRR noise rejection:
  • Standard connectors:
  • Module width:
  • Optimal cable length:
  • Line input isolator, eliminates ground loops
  • < 10 Hz to 50 kHz
  • +19 dBu @ 20 Hz, +22 dBu @ 50 Hz
  • 95 dB @ 60 Hz
  • Gold plated plug in screw terminal
  • 52 mm (2.05”)
  • Output - 1 m (3')
Buy Now
DIN-LI
More Info Buy Now $139.99

Line Input - Single channel isolator for professional line inputs up to +22 dB. May be used with any combination of balanced or unbalanced sources or destinations. Screw-down terminals for easy integration.

  • Primary application:
  • Frequency response:
  • Max signal handling:
  • CMRR noise rejection:
  • Standard connectors:
  • Module width:
  • Optimal cable length:
  • Line input isolator, eliminates ground loops
  • < 10 Hz to 50 kHz
  • +19 dBu @ 20 Hz, +22 dBu @ 50 Hz
  • 95 dB @ 60 Hz
  • Gold plated plug in screw terminal
  • 36 mm (1.42”)
  • Output - 1 m (3')
Buy Now

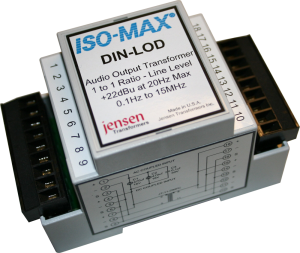

DIN-LOD
More Info Buy Now $159.99

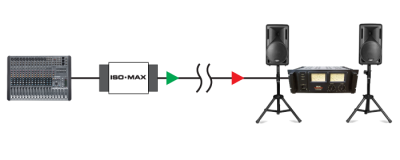

Line Output - Single channel ground isolator for professional line output where a long cable run is required. Provides exceptional signal handling at high levels and at all frequencies to 300 meters (1000’) without loss.

  • Primary application:
  • Frequency response:
  • Max signal handling:
  • CMRR noise rejection:
  • Standard connectors:
  • Module width:
  • Optimal cable length:
  • Driving long cables in balanced systems
  • < 2 Hz to > 200 kHz
  • +22 dBu @ 20 Hz, +25 dBu @ 50 Hz
  • 110 dB @ 60 Hz
  • Gold plated plug in screw terminal
  • 52 mm (2.05”)
  • Output - no limitations
Buy Now

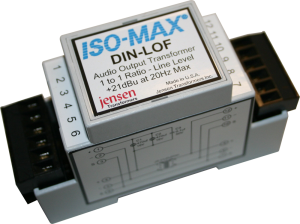

DIN-LOF

Line Output - Single channel ground isolator for professional line output where a long cable run is required. Provides superior signal handling at high levels and at all frequencies.

  • Primary application:
  • Frequency response:
  • Max signal handling:
  • CMRR noise rejection:
  • Standard connectors:
  • Module width:
  • Optimal cable length:
  • Driving long cables in balanced systems
  • < 10 Hz to > 100 kHz
  • +21 dBu @ 20 Hz, +24 dBu @ 50 Hz
  • 94 dB @ 60 Hz
  • Gold plated plug in screw terminal
  • 36 mm (1.42”)
  • Output - no limitations
Buy Now

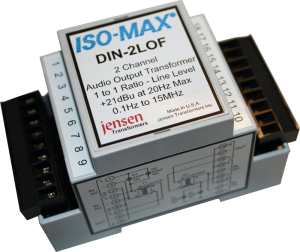

DIN-2LOF
More Info Buy Now $149.99

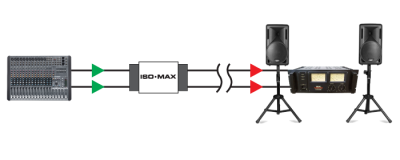

Line Output - Two channel ground isolator for professional line output where a long cable run is required. Provides superior signal handling at high levels and at all frequencies.

  • Primary application:
  • Frequency response:
  • Max signal handling:
  • CMRR noise rejection:
  • Standard connectors:
  • Module width:
  • Optimal cable length
  • Driving long cables in balanced systems
  • < 10 Hz to > 100 kHz
  • +21 dBu @ 20 Hz, +24 dBu @ 50 Hz
  • 94 dB @ 60 Hz
  • Gold plated plug in screw terminal
  • 36 mm (1.42”)
  • Output - no limitations
Buy Now
DIN-PB
More Info Buy Now $179.99

Universal Isolator - Single channel ground isolator may be used at the beginning, middle or end of a signal path. Ideally suited for long cable runs for large scale system integration, broadcast stations and recording studios. Single channel universal ground isolator for signals up to +24 dB. Designed for long cable runs; may be placed anywhere along the signal path for easy integration in large scale systems.

  • Primary application:
  • Frequency response:
  • Max signal handling:
  • CMRR noise rejection:
  • Standard connectors:
  • Module width:
  • Optimal cable length:
  • Ground isolation for balanced line inputs
  • < 1 Hz to 200 kHz
  • +21 dBu @ 20 Hz, +24 dBu @ 50 Hz
  • 125 dB @ 60 Hz
  • Gold plated plug in screw terminal
  • 52 mm (2.05”)
  • Output - 30 m (100')
Buy Now
DIN-PC
More Info Buy Now $139.99

Pro to Consumer - Single channel ground isolator provides isolation as it coverts +4 dBu professional line level signals to -10 dB for use with consumer level devices such as laptop computers and hi-fi systems.

  • Primary application:
  • Frequency response:
  • Max signal handling:
  • CMRR noise rejection:
  • Standard connectors:
  • Module width:
  • Optimal cable length:
  • Signal conversion at line input
  • < 10 Hz to 140 kHz
  • +21 dBu @ 20 Hz, +24 dBu @ 50 Hz
  • 120 dB @ 60 Hz
  • Gold plated plug in screw terminal
  • 36 mm (1.42”)
  • Output - 1 m (3')
Buy Now
DIN-DB
More Info Buy Now $139.99

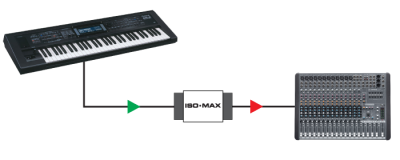

Direct Box - Single channel DI box used to convert unbalanced sources such as bass or keyboard to a balanced mic level source for long cable runs. Gracefully handles transient peaks for a more natural sound.

  • Primary application:
  • Frequency response:
  • Max signal handling:
  • CMRR noise rejection:
  • Standard connectors:
  • Module width:
  • Optimal cable length:
  • Converting instrument levels to balanced mic
  • < 10 Hz to 100 kHz
  • +21 dBu @ 20 Hz, +24 dBu @ 50 Hz
  • 100 dB @ 60 Hz
  • Gold plated plug in screw terminal
  • 36 mm (1.42”)
  • Output - 1 m (3')
Buy Now
DIN-MS-2P
More Info Buy Now $139.99

Mic Splitter - Single channel, 2-way microphone splitter with 1-isolated output and 1-direct output. Features dual Faraday shield for low noise. Configurable phantom power management circuit.

  • Primary application:
  • Frequency response:
  • Max signal handling:
  • CMRR noise rejection:
  • Standard connectors:
  • Module width:
  • Optimal cable length
  • Splitting a mic signal to multiple outputs
  • < 10 Hz to 100 kHz
  • +2 dBu @ 20 Hz
  • 120 dB @ 60 Hz
  • Gold plated plug in screw terminal
  • 36 mm (1.42”)
  • Output - 30 m (100')
Buy Now
DIN-2MS-2P
More Info Buy Now $219.99

Mic Splitter - Two channel, 2-way microphone splitter with 1-isolated output and 1-direct output per channel. Features dual Faraday shield for low noise. Configurable phantom power management circuit.

  • Primary application:
  • Frequency response:
  • Max signal handling:
  • CMRR noise rejection:
  • Standard connectors:
  • Module width:
  • Optimal cable length
  • Splitting a mic signal to multiple outputs
  • < 10 Hz to 100 kHz
  • +2 dBu @ 20 Hz
  • 120 dB @ 60 Hz
  • Gold plated plug in screw terminal
  • 36 mm (1.42”)
  • Output - 30 m (100')
Buy Now
