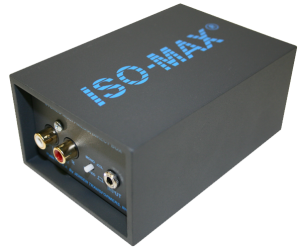

Two channel laptop direct box -

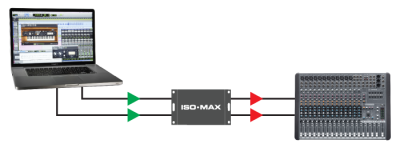

Two channel direct box converts Hi-Z signal from a laptop to balanced mic level for PA system. Stereo to mono summing. Comes with RCA and 3.5 mini TRS inputs, XLR-M outputs.

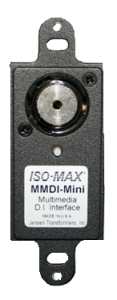

Wall Plate Direct Box -

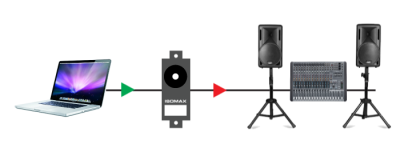

Single channel passive multi-media DI converts stereo Hi-Z signal from a laptop to a mono mic level. Fits single gang electrical box with Decora® face plate. Screw terminal output for easy termination.
Primary application
Frequency response
Max signal handling:
CMRR noise rejection:
Standard connector:
Converting Hi-Z signals to balanced mic level
< 10 Hz to 100 kHz
+22 dBu @ 20 Hz, +25 dBu @ 50 Hz
100 dB @ 60 Hz
3.5 mini TRS inputs, balanced screw terminal output
