DIN-PB single channel universal line isolator

179.99 Request

The Iso•Max DIN-PB is a universal isolator that gives you the freedom to solve noise problems anywhere in the signal chain.

  • Eliminates hum and buzz caused by ground loops
  • May be used anywhere in the signal chain
  • Ruler flat frequency response from 1 Hz to 200 kHz
  • Easy to use DIN rail format for quick installations

The design begins with a gray molded assembly made from UL94-VO flame retardant Noryl that snaps into place onto a standard 35 mm DIN rail for easy installation in a NEMA enclosure. Connections to and from the module are made via removable screw-down wire terminals. Plug and play easy to use, this passive interface does not require any power to work. Inside is a specially designed Jensen multi-tap isolation transformer that provides unity gain, signal boost or level attenuation depending on how they are terminated. These are able to withstand signals in excess of +24 dB without discernible distortion while delivering a fabulously linear response to 200 kHz. This provides galvanic isolation between the input and output to eliminate hum and buzz caused by ground loops, rejecting noise by as much as 125 dB. To further optimize the performance, a choice of connection point options enable the user to determine the most appropriate grounding scheme to suit the installation.

Simply connect the DIN-PB anywhere you like between the source and destination and the DIN-PB will quietly go to work. This makes the DIN-PB a superb choice for the most demanding broadcast, AV and venue installations.

Applications

DIN-PB as a universal isolator

The DIN-PB may be connected anywhere in the signal chain. This makes it a great choice for machine rooms in a broadcast facility where different varying power systems throughout can introduce noise.

DIN-PB in the studio

Recording and broadcast studios require a noise-free signal transfer while delivering the most accurate sound possible. The Iso•Max DIN-PB eliminates ground loops and lowers RF without introducing distortion, phase shift or artifact.

Specifications

1:1 series/series configuration, all levels are input unless noted

PARAMETER CONDITIONS MINIMUM TYPICAL MAXIMUM
Input impedance, Zi 1 kHz, +4 dBu, test circuit 1 743 Ω 750 Ω 757 Ω
Voltage gain 1 kHz, +4 dBu, test circuit 1 -2.1 dB -1.9 dB -1.7 dB
Magnitude response, ref 1 kHz 20 Hz, +4 dBu, test circuit 1 -0.2 dB -0.06 dB ±0.0 dB
20 kHz, +4 dBu, test circuit 1 -1.0dB -0.02 dB +0.1 dB
Deviation from linear phase (DLP) 20 Hz to 20 kHz, +4 dBu, test circuit 1   +0.6/-0° ±2.0°
Distortion (THD) 1 kHz, +4 dBu, test circuit 1   <0.001%
Distortion (THD) 20 Hz, +4 dBu, test circuit 1   0.025% 0.10%
Maximum 20 Hz input level 1% THD, test circuit 1 +19 dBu +21 dBu
Input common mode rejection ratio (CMRR) 600 Ω balanced source 60 Hz, test circuit 2   125 dB
Input common mode rejection ratio (CMRR) 600 Ω balanced source 3 kHz, test circuit 2 75 dB 95 dB
Output common mode rejection ratio (CMRR) 600 Ω balanced load 60 Hz, test circuit 3   110 dB
Output common mode rejection ratio (CMRR) 600 Ω balanced load 3 kHz, test circuit 3   80 dB
Output impedance, Zo 1 kHz, test circuit 1   750 Ω
Turns ratio primary to secondary 0.999:1 1.000:1 1.001:1
Optimal cable length input   50 m (165’) 200 m (650’)
Optimal cable length output   30 m (100’) 100 m (325’)
Temperature range operation or storage 0°C   70°C
Input to Output Voltage Difference* any input to any output shield or any shield to case, 60 Hz 250 V RMS

Graphs

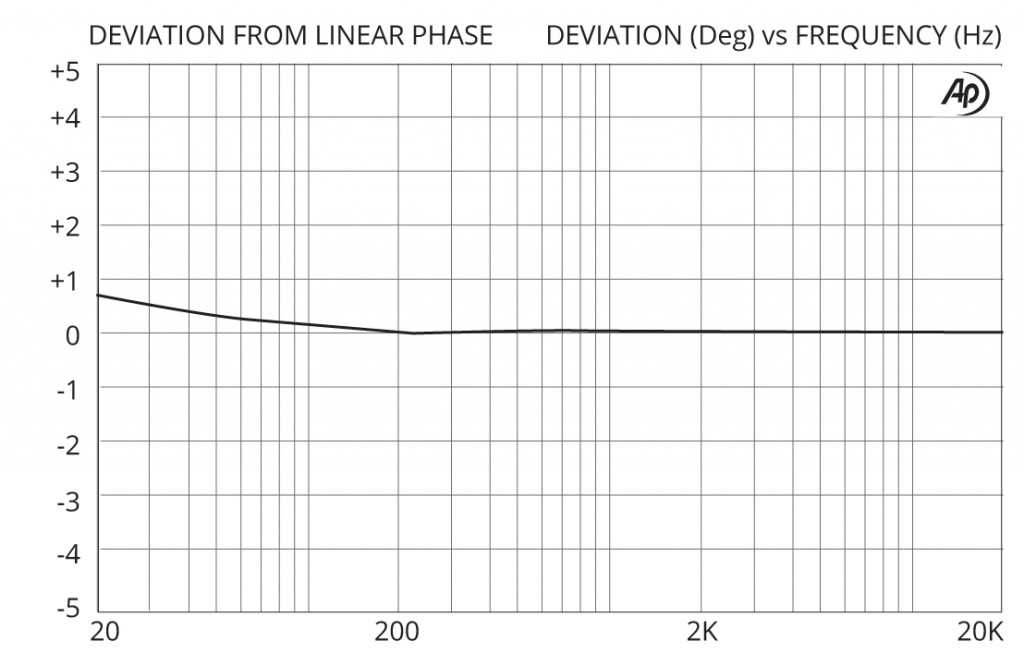

Phase Distortion (DLP)
Frequency Response
THD vs Level at Low Frequencies
THD vs Frequency at Various Levels
