PO-XX Line output isolator

The Iso-Max PO-XX is a single channel output isolator for both balanced and unbalanced signals where extreme signal handling is required to drive long cable runs.

  • Drives balanced and unbalanced signals long distances
  • Eliminates hum and buzz caused by ground loops
  • Withstands input levels in excess of +26 dB at 30 Hz
  • Plug & play easy to use, no power required

The design begins with an extruded aluminum case that comes standard with gold plated XLR connectors. Plug and play easy to use, this passive interface does not require any power to work. Inside is a high performance nickel core Jensen transformer that is able to withstand signals in excess of +26 dBu without discernible distortion while delivering a linear response to 150 kHz. This provides galvanic isolation between the input and output to eliminate hum and buzz caused by ground loops, rejecting noise by as much as 110 dB.

Made to accommodate both balanced or unbalanced signals, simply connect the PO-XX at the output of the source and the PO-XX will quietly go to work as it delivers exceptional audio performance. This makes the Iso-Max PO-XX a superb choice for the most demanding studio, broadcast and performance venue installations.

Applications

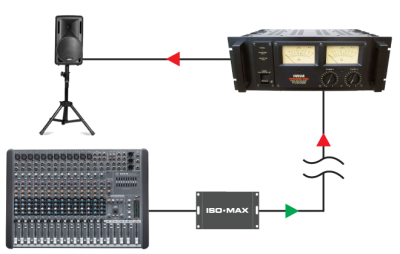

PO-XX with a PA system

Eliminating noise in a PA system can sometimes take hours of trouble shooting, particularly when the mixer, amplifiers and speakers are distanced apart. Simply connect the PO-XX at the output of your mixer to instantly eliminate ground loop buzz and hum.

Isolating one console from the other

Whether you are isolating two consoles in a festival or experiencing noise when connecting to a drive rack, the PO-XX is easily inserted into the signal chain to break the ground loop and eliminate noise as it easily handles huge bass transients without distortion.

Specifications

All levels are output unless noted

PARAMETER CONDITIONS MINIMUM TYPICAL MAXIMUM
Input impedance, Zi 20 Hz to 20 kHz, 0 dBu, test circuit 3, RL = 600 Ω 670 Ω 680 Ω 690 Ω
Input impedance, Zi 1 kHz, 0 dBu, test circuit 3, RL = 20 kΩ
Voltage gain 1 kHz, 0 dBu, test circuit 1, Rs = 0 Ω -1.2 dB -1.1 dB -0.9 dB
Magnitude response, ref 1 kHz 20 Hz, 0 dBu, test circuit 1, Rs = 0 Ω -0.1 dB -0.02 dB ±0.0 dB
Magnitude response, ref 1 kHz 20 kHz, 0 dBu, test circuit 1, Rs = 0 Ω -0.1 dB ±0.0 dB +0.1 dB
Deviation from linear phase (DLP) 20 Hz to 20 kHz, 0 dBu, test circuit 1, Rs = 0 Ω   +0.3 / -0° ±1.0°
Distortion (THD) 1 kHz, +4 dBu, test circuit 1, Rs = 0 Ω   <0.001%
Distortion (THD) 20 Hz, +4 dBu, test circuit 1, Rs = 0 Ω   0.004% 0.03%
Maximum output level 20 Hz, 1% THD, test circuit 1, Rs = 0 Ω +20 dBu +22 dBu
Common – mode rejection ratio (CMRR) 60 Hz, test circuit 2   110 dB
Common – mode rejection ratio (CMRR) 3 kHz, test circuit 2 75 dB 85 dB
Recommended source impedance output impedance of device connected the ISO-MAX input 0 600 Ω 2 kΩ
Recommended load impedance input impedance of device connected the ISO-MAX output 150 Ω 20 kΩ ∞
Output impedance, Zo 20 Hz to 20 kHz, 0dBu, test circuit 4   80 Ω
Optimal cable length (balanced) input   50 m (150’) 200 m (600’)
Optimal cable length (balanced) output   100 m (300’) 300 m (1000’)
Optimal cable length (unbalanced) input   8 m (25’) 15 m (50’)
Optimal cable length (unbalanced) output   8 m (25’) 15 m (50’)
Temperature range operation or storage 0°C   70°C
Input to Output Voltage Difference* any input to any output shield or any shield to case, 60 Hz     24 V RMS 34 V peak

Graphs

Phase Distortion
Frequency Response
THD vs Level at Low Frequencies
THD vs Frequency at Various Levels
