Applications
PO-2XX with a PA system
Eliminating noise in a PA system can sometimes take hours of trouble shooting, particularly when the mixer, amplifiers and speakers are distanced apart. Simply connect the PO-2XX at the output of your mixer to instantly eliminate hum and buzz caused by ground loops.
Isolating one console from the other
Whether you are isolating two consoles in a festival or experiencing noise when connecting to a drive rack, the PO-2XX is easily inserted into the signal chain to break the ground loop and eliminate noise as it easily handles huge bass transients without distortion.
Specifications
All levels are output unless noted
| PARAMETER | CONDITIONS | MINIMUM | TYPICAL | MAXIMUM |
|---|---|---|---|---|
| Input impedance, Zi | 20 Hz to 20 kHz, 0 dBu, test circuit 3, RL = 600 Ω | 670 Ω | 680 Ω | 690 Ω |
| Input impedance, Zi | 1 kHz, 0 dBu, test circuit 3, RL = 20 kΩ | |||
| Voltage gain | 1 kHz, 0 dBu, test circuit 1, Rs = 0 Ω | -1.2 dB | -1.1 dB | -0.9 dB |
| Magnitude response, ref 1 kHz | 20 Hz, 0 dBu, test circuit 1, Rs = 0 Ω | -0.1 dB | -0.02 dB | ±0.0 dB |
| Magnitude response, ref 1 kHz | 20 kHz, 0 dBu, test circuit 1, Rs = 0 Ω | -0.1 dB | ±0.0 dB | +0.1 dB |
| Deviation from linear phase (DLP) | 20 Hz to 20 kHz, 0 dBu, test circuit 1, Rs = 0 Ω | +0.3 / -0° | ±1.0° | |
| Distortion (THD) | 1 kHz, +4 dBu, test circuit 1, Rs = 0 Ω | <0.001% | ||
| Distortion (THD) | 20 Hz, +4 dBu, test circuit 1, Rs = 0 Ω | 0.004% | 0.03% | |
| Maximum output level | 20 Hz, 1% THD, test circuit 1, Rs = 0 Ω | +20 dBu | +22 dBu | |
| Common – mode rejection ratio (CMRR) | 60 Hz, test circuit 2 | 110 dB | ||
| Common – mode rejection ratio (CMRR) | 3 kHz, test circuit 2 | 75 dB | 85 dB | |
| Recommended source impedance | output impedance of device connected the ISO-MAX input | 0 | 600 Ω | 2 kΩ |
| Recommended load impedance | input impedance of device connected the ISO-MAX output | 150 Ω | 20 kΩ | ∞ |
| Output impedance, Zo | 20 Hz to 20 kHz, 0dBu, test circuit 4 | 80 Ω | ||
| Optimal cable length (balanced) | input | 50 m (150’) | 200 m (600’) | |
| Optimal cable length (balanced) | output | 100 m (300’) | 300 m (1000’) | |
| Optimal cable length (unbalanced) | input | 8 m (25’) | 15 m (50’) | |
| Optimal cable length (unbalanced) | output | 8 m (25’) | 15 m (50’) | |
| Temperature range | operation or storage | 0°C | 70°C | |
| Input to Output Voltage Difference* | any input to any output shield or any shield to case, 60 Hz | 24 V RMS 34 V peak |
Graphs
Phase Distortion (DLP)

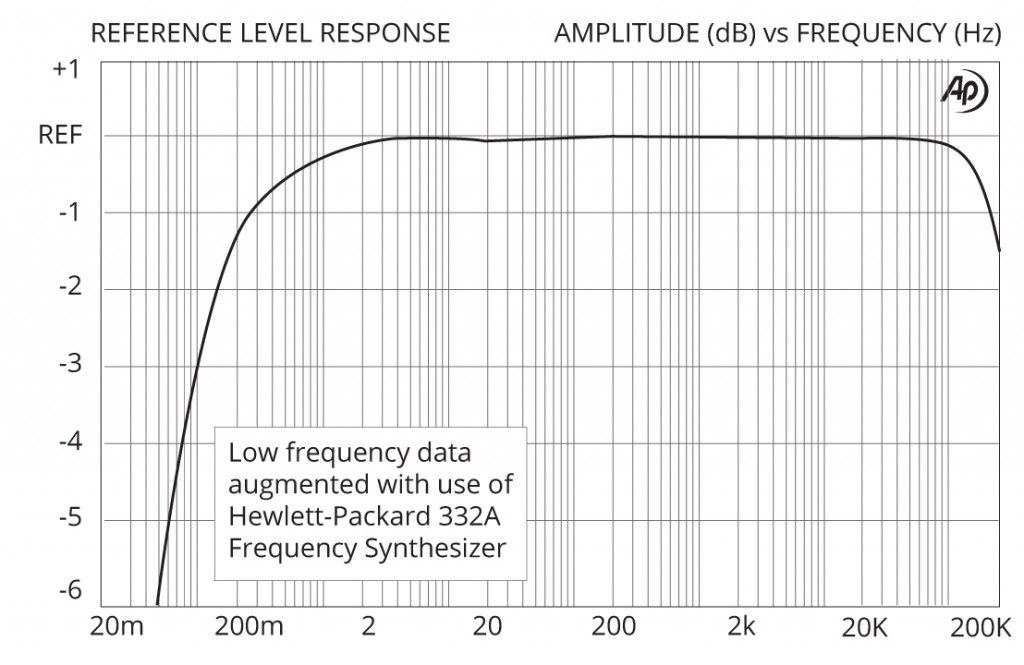

Frequency Response

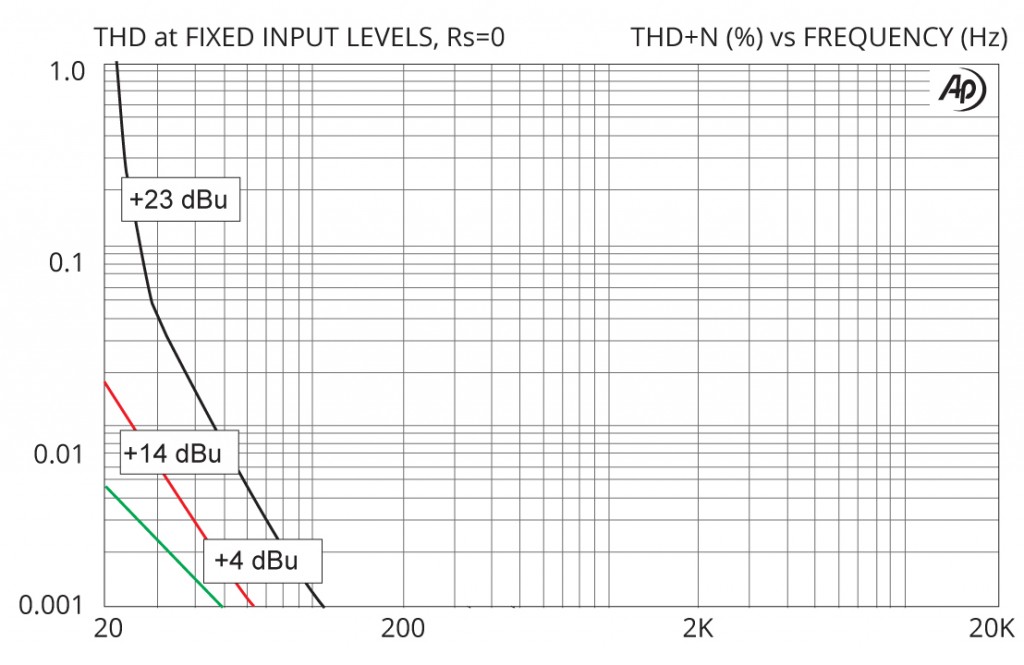

THD vs Level at Low Frequencies
THD vs Frequency at Various Levels
