DIN-PC Pro-to-consumer isolator

The Iso-Max DIN-PC is a single channel pro-to-consumer isolator that is used to convert a +4 dBu line-level device to -10 dBV for consumer-level signals such as connecting the balanced output from a mixing desk to the unbalanced input of a hand-held video recorder or laptop.

Converts +4 dB balanced signals to -10 dB unbalanced

Eliminates hum and buzz caused by ground loops

Ruler flat frequency response from 10 Hz to 140 kHz

Plug and play easy to use, no power required

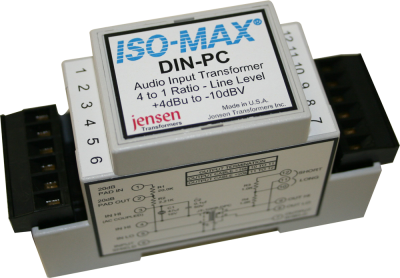

The design begins with a gray molded assembly made from UL94-VO flame retardant Noryl that snaps into place onto a standard 35 mm DIN rail for easy installation in a NEMA enclosure. Connections to and from the module are made via removable screw-down wire terminals. Plug and play easy to use, this passive interface does not require any power to work. Inside is a Jensen high performance transformer that is able to withstand signal levels to +21 dBu at 20 Hz without discernible distortion. This provides galvanic isolation between the input and output to eliminate hum and buzz caused by ground loops, rejecting noise by as much as 120 dB.

Made for the most demanding professionals, the DIN-PC delivers a ruler flat response from 10 Hz to 140 kHz with less than 2° phase shift at all frequencies. This makes the DIN-PC ideal for converting balanced sources to unbalanced inputs for large scale installations in performance venues, broadcast houses and AV systems.

Applications

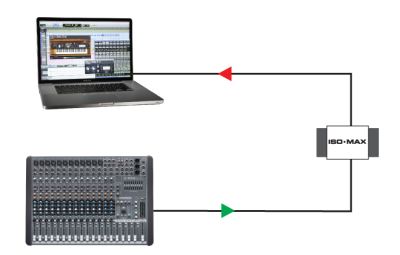

DIN-PC with a laptop

Use the DIN-PC to convert the balanced line level output from your mixing console to the unbalanced input on your laptop or sound card. The DIN-PC will manage the signal while eliminating hum and buzz caused by ground loops.

Pro-balanced signal to hi-fi

The Iso•Max DIN-PC is perfect for situations where you need to send a pro-balanced signal to a stereo hi-fi type input. Simply connect to the balanced inputs and output the -10 dB signal to feed the hi-fi system.

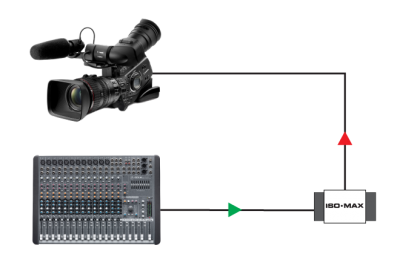

Audio interface for video camera

Capturing a live performance is easy using the DIN-PC as the audio interface between the mixing console and your video camera. Connect the console to the balanced inputs and send the unbalanced outputs to your camera.

Specifications

All levels are input unless noted

PARAMETER	CONDITIONS	MINIMUM	TYPICAL	MAXIMUM
Input impedance, Zi	1 kHz, +4 dBu, test circuit 1	39.4 kΩ	41.5 kΩ	43.6 kΩ
Voltage gain	1 kHz, +4 dBu, test circuit 1	-13.4 dB	-12.9 dB	-12.4 dB
Magnitude response, ref 1 kHz	20 Hz, +4 dBu, test circuit 1	-0.15 dB	-0.04 dB	±0.0 dB
Magnitude response, ref 1 kHz	20 kHz, +4 dBu, test circuit 1	-0.15 dB	-0.03 dB	+0.1 dB
Deviation from linear phase (DLP)	20 Hz to 20 kHz, +4 dBu, test circuit 1		+0.6/-0.1°	±2.0°
Distortion (THD)	1 kHz, +4 dBu, test circuit 1		<0.001%
Distortion (THD)	20 Hz, +4 dBu, test circuit 1		0.015%	0.05%
Maximum 20 Hz input level	1% THD, test circuit 1	+19 dBu	+21 dBu
Common mode rejection ratio (CMRR) 50 Ω balanced source	60 Hz, test circuit 2		120 dB
Common mode rejection ratio (CMRR) 50 Ω balanced source	3 kHz, test circuit 2	70 dB	85 dB
Common mode rejection ratio (CMRR) 600 Ω unbalanced source	60 Hz, test circuit 3		90 dB
Common mode rejection ratio (CMRR) 600 Ω unbalanced source	3 kHz, test circuit 3		55 dB
Output impedance, Zo	1 kHz, test circuit 1		225 Ω
Optimal cable length	input
Optimal cable length	output		1 m (3’)	6 m (20’)
Temperature range	operation or storage	0°C		70°C
Breakdown voltage*	primary to secondary to shield and case, 60 Hz, 1 minute test duration	250 V RMS

Graphs

Phase Distortion (DLP)

Frequency Response

THD vs Level at Low Frequencies

THD vs Frequency at Various Levels
