Distro

Distribution DIN module

DIN-MS-2P
More Info Buy Now $139.99

Mic Splitter - Single channel, 2-way microphone splitter with 1-isolated output and 1-direct output. Features dual Faraday shield for low noise. Configurable phantom power management circuit.

  • Primary application:
  • Frequency response:
  • Max signal handling:
  • CMRR noise rejection:
  • Standard connectors:
  • Module width:
  • Optimal cable length
  • Splitting a mic signal to multiple outputs
  • < 10 Hz to 100 kHz
  • +2 dBu @ 20 Hz
  • 120 dB @ 60 Hz
  • Gold plated plug in screw terminal
  • 36 mm (1.42”)
  • Output - 30 m (100')
Buy Now
DIN-2MS-2P
More Info Buy Now $219.99

Mic Splitter - Two channel, 2-way microphone splitter with 1-isolated output and 1-direct output per channel. Features dual Faraday shield for low noise. Configurable phantom power management circuit.

  • Primary application:
  • Frequency response:
  • Max signal handling:
  • CMRR noise rejection:
  • Standard connectors:
  • Module width:
  • Optimal cable length
  • Splitting a mic signal to multiple outputs
  • < 10 Hz to 100 kHz
  • +2 dBu @ 20 Hz
  • 120 dB @ 60 Hz
  • Gold plated plug in screw terminal
  • 36 mm (1.42”)
  • Output - 30 m (100')
Buy Now

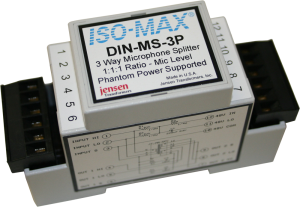

DIN-MS-3P
More Info Buy Now $159.99

Mic Splitter - Single channel, 3-way microphone splitter with 2-isolated outputs and 1-direct output. Features dual Faraday shield for low noise. Configurable phantom power management circuit.

  • Primary application:
  • Frequency response:
  • Max signal handling:
  • CMRR noise rejection:
  • Standard connectors:
  • Module width:
  • Optimal cable length:
  • Splitting a mic signal to multiple outputs
  • < 10 Hz to 100 kHz
  • +2 dBu @ 20 Hz
  • 120 dB @ 60 Hz
  • Gold plated plug in screw terminal
  • 36 mm (1.42”)
  • Output - 30 m (100')
Buy Now
DIN-MS-4P
More Info Buy Now $229.99

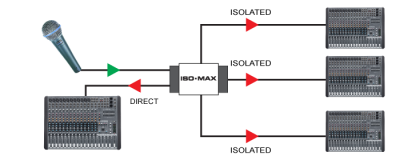

Mic Splitter - Single channel, 4-way microphone splitter with 3-isolated outputs and 1-direct output. Features dual Faraday shield for low noise. Configurable phantom power management circuit.

  • Primary application:
  • Frequency response:
  • Max signal handling:
  • CMRR noise rejection:
  • Standard connectors:
  • Module width:
  • Max cable length:
  • Splitting a mic signal to multiple outputs
  • < 10 Hz to 100 kHz
  • +11 dBu @ 20 Hz
  • 120 dB @ 60 Hz
  • Gold plated plug in screw terminal
  • 52 mm (2.05”)
  • Output - 30 m (100')
Buy Now
